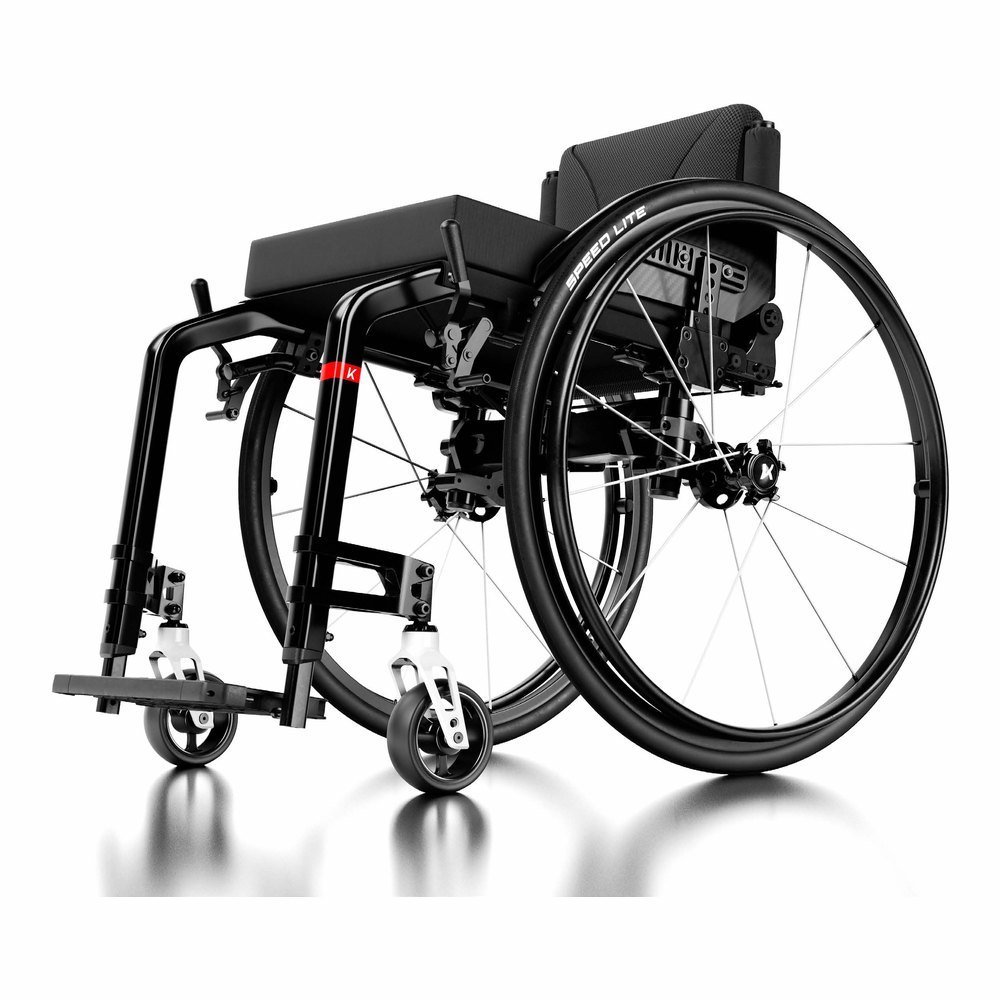

Küschall Champion Active Wheelchair

Küschall’s original folding, open-frame active wheelchair, engineered with a robust hybrid folding mechanism and hydroformed technology for an efficient, energy-saving drive.

The Küschall Champion is Küschall’s original folding, open-frame active wheelchair, precisely engineered with a robust hybrid folding mechanism that folds and disengages in one smooth motion for easy travel and storage. Advanced hydroformed technology strengthens the frame for increased rigidity and a more energy-efficient drive.

The range includes the Champion SK (‘Swiss Knife’) with a folding front frame for an even more compact package, and the Champion Carbon, which is roughly 430 g lighter than the standard aluminium frame for enhanced portability without compromising performance. Carbolife handrims improve control with a low-effort grip, while the light active brake keeps the design minimal and precise.

Every Champion can be personalised through Küschall’s UNIQUE service, with a wide choice of frame colours, decal styles and decal colours, letting users build a wheelchair tailored to their lifestyle.

Key Features

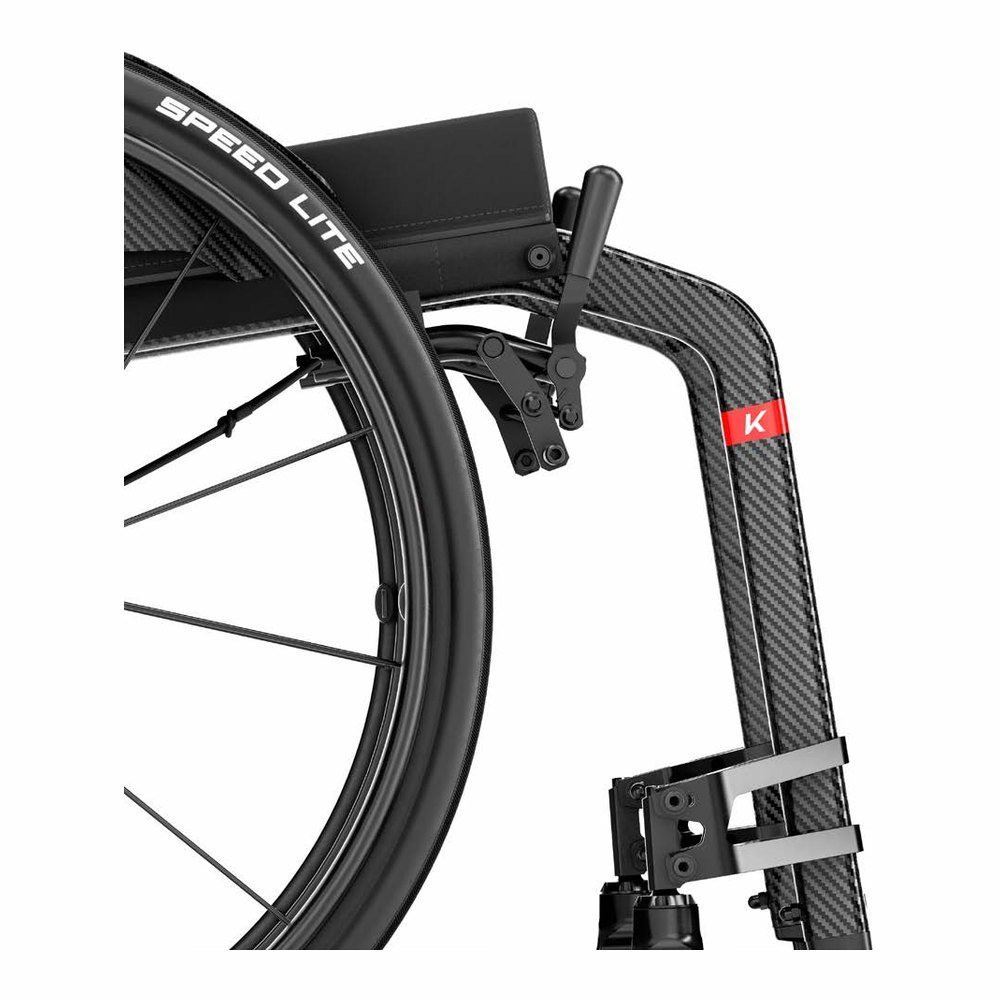

  • Robust hybrid folding mechanism, folds and disengages in one motion
  • Hydroformed frame technology for increased rigidity and efficient propelling

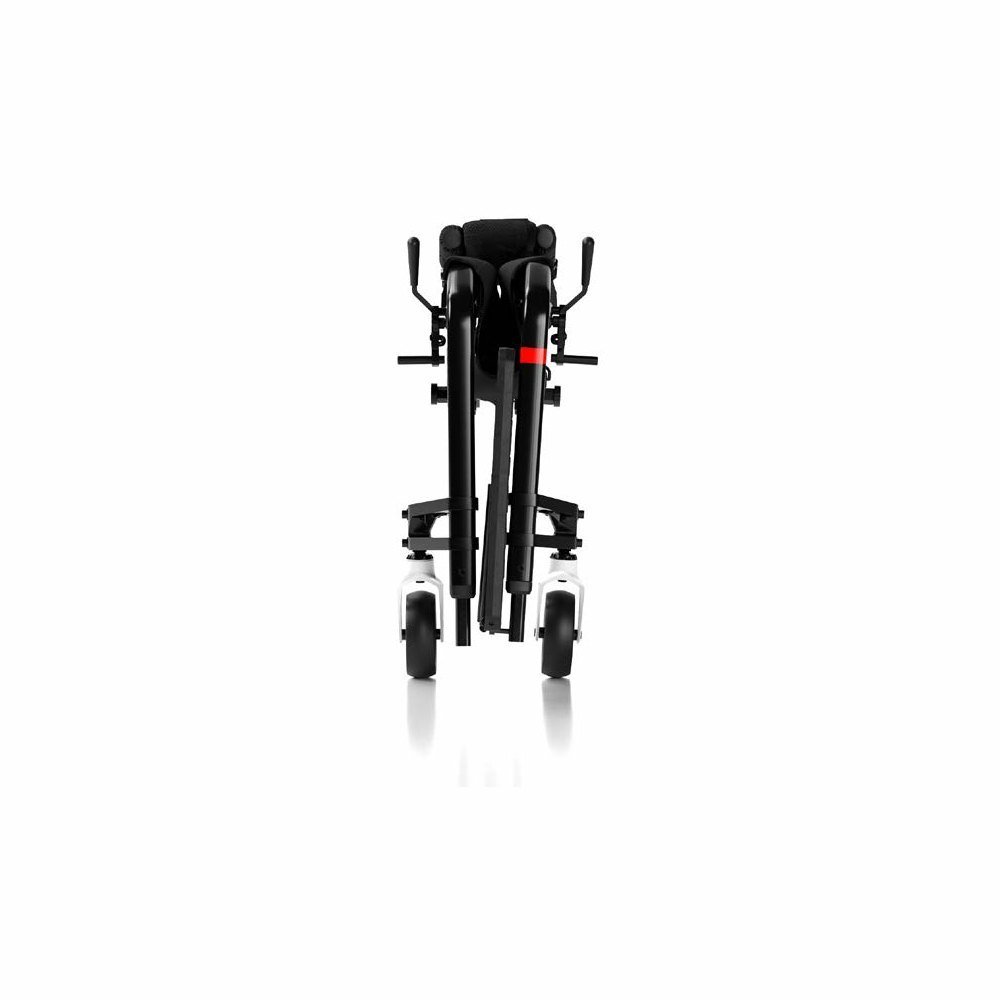

  • Champion SK variant with folding front frame for extra-compact storage

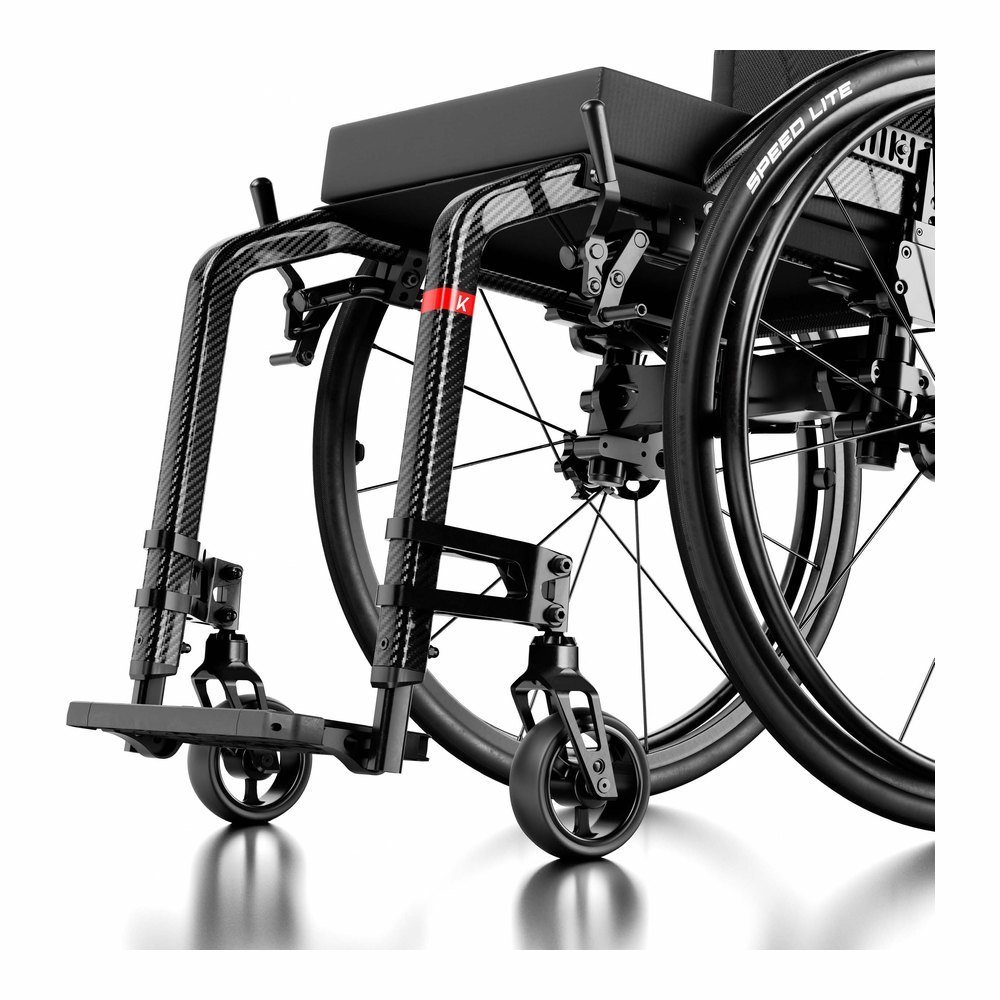

  • Champion Carbon variant, approx. 430 g lighter than standard aluminium frame

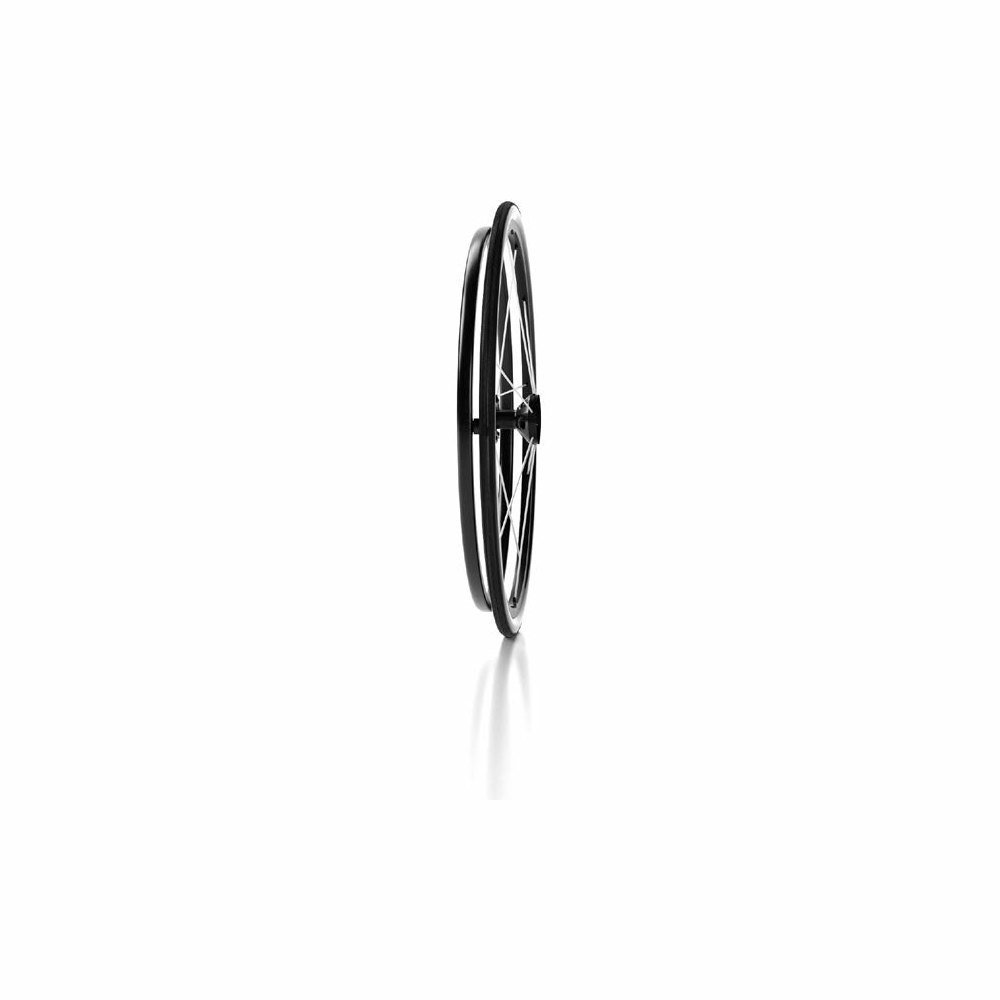

  • Carbolife handrims for improved control and low-effort grip
  • Adjustable centre of gravity (9 positions) and adjustable camber
  • Extensive customisation via frame colour, decal style/colour and the UNIQUE personalisation service

Specifications

Seat Width360 – 480 mm (20 mm increments)
Seat Depth340 – 480 mm (20 mm increments)
Backrest Height300 – 465 mm
Backrest Angle76° / 80.5° / 85° / 89.5° / 94°
Seat HeightFront 450-540 mm / Rear 390-490 mm
Frame Angle75° / 90°
Camber0° / 1° / 3°
Total Weight Unloadedapprox. 8.8 kg
Transport Weightapprox. 6.3 kg
Max. User Weight120 kg
